Product Details:
|
| Core Components: | Gearbox, Gear, Motor, Anilox Roller | Product Name: | Corrugated Carton Box Machine |
|---|---|---|---|
| Machine Type: | Die Cutter Corrugated Carton Box Machine | Function: | Corrugated Carton Box Machine |
| Color: | Client Request | Condition: | New |
| High Light: | Die Cutter corrugated carton box machine,High-capacity corrugated carton box machine,High-capacity corrugated box making machine |
||

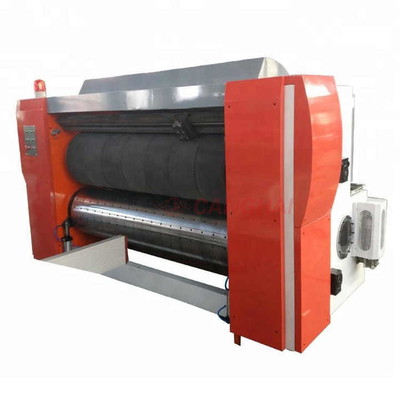

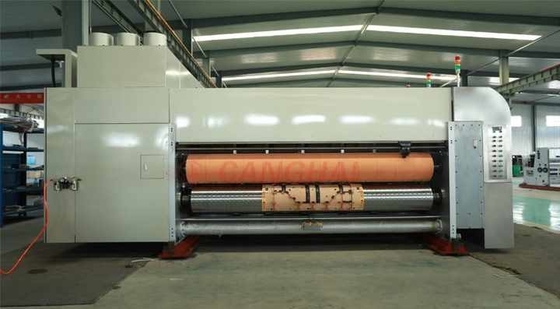

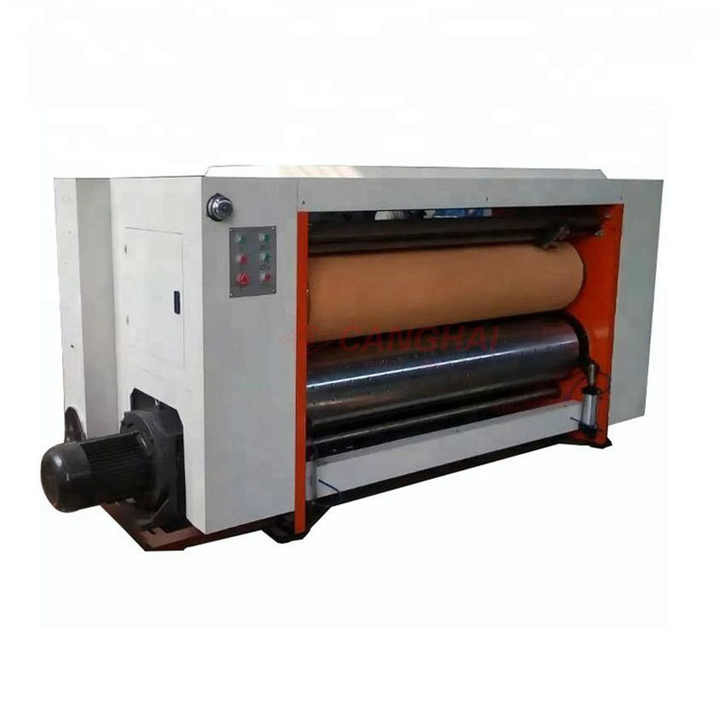

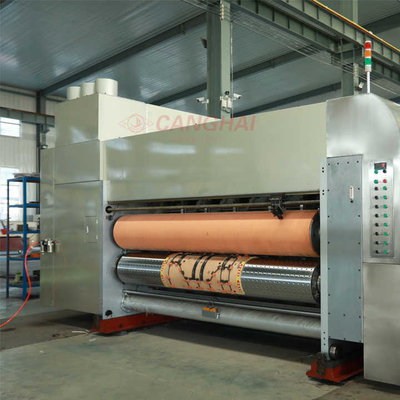

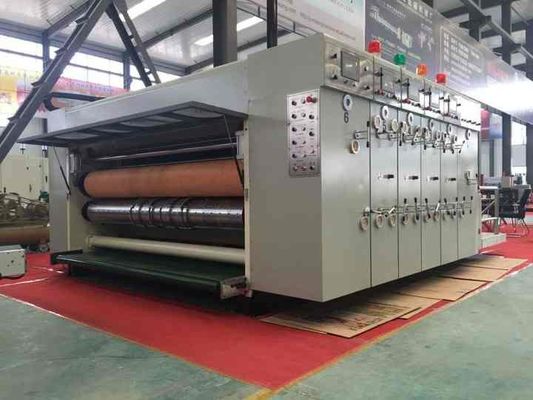

Die Cutter Corrugated Carton Box Machine
die cutter machine according to the different forms of embossing, mainly divided into three types of rotary die cut machine, flat bed die cut machine, flat platen die cut machine.
Rotary die cutting machine carton box is characterized by line contact, die cutting pressure, high production efficiency, and offset printing machine, flexo printing machine, gravure printing machine and other printing equipment can be connected to the line die cutting, so the scope of application is relatively wide.
Complete machine specification of high quality corrugated carton box die cutter machine for sale
| Item | die cutter machine | ||||||
| 1020 | 1224 | 1428 | 1630 | ||||
| Max speed | 220s/min | 180s/min | 160s/min | 140s/min | |||
| Max feeding size | 1000*2000mm | 1270*2600mm | 1500*3000mm | 1660*3200mm | |||
| Min feeding size | 260*650mm | 320*750mm | 350*750mm | 400*750mm | |||
| Skip feeding | 1250*2200mm | 1500*2600mm | 1800*3000mm | 2000*3200mm | |||
| Print area | 950*2000mm | 1200*2400mm | 1430*2800mm | 1600*3000mm | |||
| Print thickness | 7.2mm(include plate mattress) | ||||||
| Max slotting depth | 250mm | 320mm | 390mm | 430mm | |||
| Min slot gap(nomal) | 150*150*150*150mm | ||||||
| Min slot gap(reverse) | 250*50*250*50mm | 250*110*250*110mm | |||||
| Print accuracy | ≤±0.35mm | ≤±0.4mm | ≤±0.5mm | ||||
| Cardboard thickness | 2.5 - 9mm |
2.5 - 12mm |
|||||
