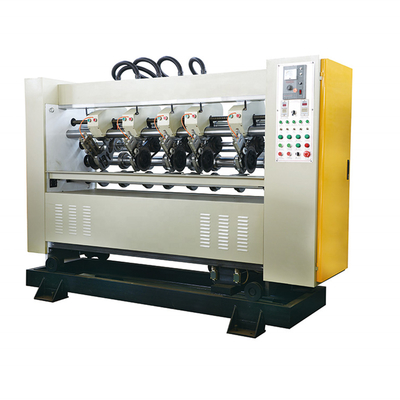

Thin Blade Automated Slitter Scorer Machine For Corrugated Carton Box

Thin Blade Automated Slitter Scorer Machine For Corrugated Carton Box
Thin Blade Automated Slitter Scorer Machine For Corrugated Carton Box Thin Blade Automated Slitter Scorer Machine For Corrugated Carton Box Thin Blade Automated Slitter Scorer Machine For Corrugated Carton Box Thin Blade Automated Slitter Scorer Machine For Corrugated Carton Box Thin Blade Automated Slitter Scorer Machine For Corrugated Carton Box Thin Blade Automated Slitter Scorer Machine For Corrugated Carton Box

Large Image :  Thin Blade Automated Slitter Scorer Machine For Corrugated Carton Box

Product Details:
Place of Origin: CHINA
Brand Name: Hh
Certification: CE EAC
Model Number: 1800mm 2000mm 2200mm 2500mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated
Packaging Details: plastic
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 30 sets every month
Contact Now

Thin Blade Automated Slitter Scorer Machine For Corrugated Carton Box

Description
Highlight:

Thin Blade Automated slitter scorer machine

,

Corrugated Carton Box slitter scorer machine

Thin Blade Slitter Score Corrugated Carton Box Machine

1. Design speed:150m/min

2. Working width:1400-2200mm
3. Adopt 4 Blades 6 Scorers or 5 Blades 8 Scorers
4. Adopt electric lifting to change the height of paper cutting and creasing, to suitable for height of paper feeding.
5. Adopts novelty thin edge high speed paper cutting,the incisions are level up and velvet.
6.Automatic grinding edge system can be realized in the process of production,non-stop machine grinding edge,according to material and condition of hem,set the interval meter and the grinding time at any moment.
7.The whole set adopt electric knife adjustment,to correct cardboard deviation.
Width of passing paper board mm 1900
Speed of passing paper board m/min 80-180
Number of knives Piece 4(increase or decrease available)
Number of track-pressing wheels Pair 6(increase or decrease available)
Min, dividing width mm 130
Min. track-pressing width mm 60
Diameter of knife mm φ200
Thickness of knife mm ≤1mm
Motor power kw

4.0


Cut the cardboard thickness mm 2-14
Appearance size mm 2800×1120×1600
Weight kg 1200

Tag:

Thin Blade Slitter Scorer Machine,

Partition Slotting Machine PLC,

Partition Slotting Corrugated Carton Box Machine
