Product Details:
|
| Printing Plate Thickness: | 6mm | Printing Speed: | 80-160pcs/min |
|---|---|---|---|
| Mesh Roller: | Ceramic Roller | Electric Brand: | Siemens Schneider |
| Stacking System: | Vacuum Suction | Printing Ink: | Water-based Ink |
| Key Selling Points: | Automatic, Long Service Life | Driven Type: | Mechanical |
| Type: | Automatic | Printting Clours: | 1-4 Colours |
| Function: | Corrugated Carton Box Machine | Product Type: | Pizza Box Machine |
| Machinery Test Rep: | Provided | ||
| High Light: | 2 colour flexo printer slotter machine,corrugated carton flexo printer slotter machine,5 colour flexo printer slotter |
||

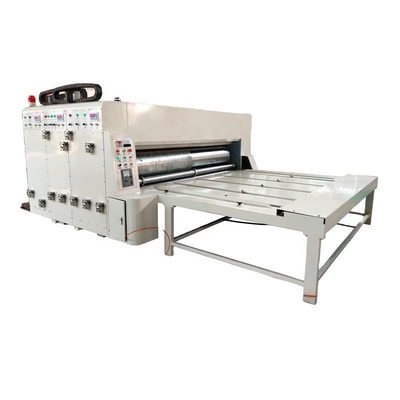

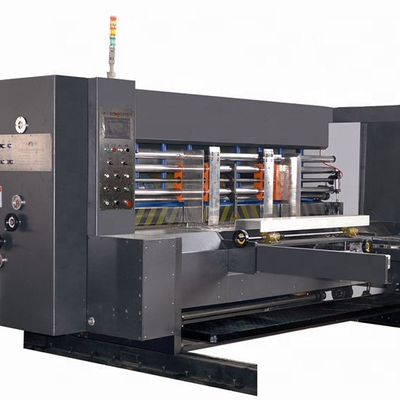

Flexo 2-5 Colour Printer Slotter Corrugated Carton Box Machine
| Model |
2000 |
2200 |
2400 |
2600 |
3000 |
2600 |
3000 |
||||||
| Roller diameter(mm) | 468 | 468 | 468 | 468 | 468 | 530 | 530 | ||||||
| Max.feeding size (mm) | 2000 | 2200 | 2400 | 2600 | 3000 | 2600 | 3000 | ||||||
| Max.printing size (mm) | 1470×1600 | 1470×1800 | 1470×2000 | 1470×2200 | 1470×2400 | 1600×2600 | 1600×2400 | ||||||
| Color accuracy (mm) | two color ±0.5 three color ±0.75 | ||||||||||||
| Slotting width* depth | 7mm*300mm | Transmission mode | Chain type | ||||||||||
| Slot Accuracy (mm) | ±1.5 | Work speed (sheets/min) | 0-60 sheets/min | ||||||||||
| Electrical power (KW) | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 5.5 | 5.5 | ||||||
Use and characteristics
1.The machine is a integrated device which can print,cut corner,slot,roll line and cut edge.
2.Adopt chain drive,manual feeding paperboard.
3.Adopt 360.degrees electric or manual adjust phase,can be adjusted both when the machine is on or off.
4.Manual adjust slotter knife,can adjust four knives synchronally,easy operation and fast adjustment.
5.When the machine is off the glue roller will rise itself,avoid damage the template.
6.The roller have automatic idling device,so that the water base ink will not dry when the machine is off
7.Electric separating,pneumatic locking
8.Pneumatic diaphragm pump provide ink.non-gap adjustment
