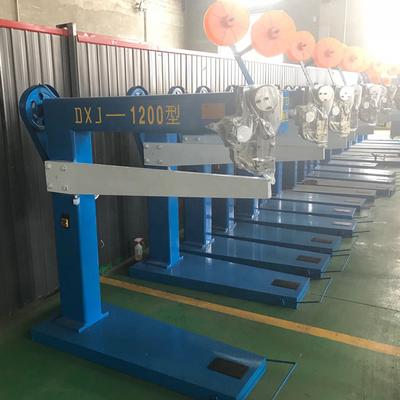

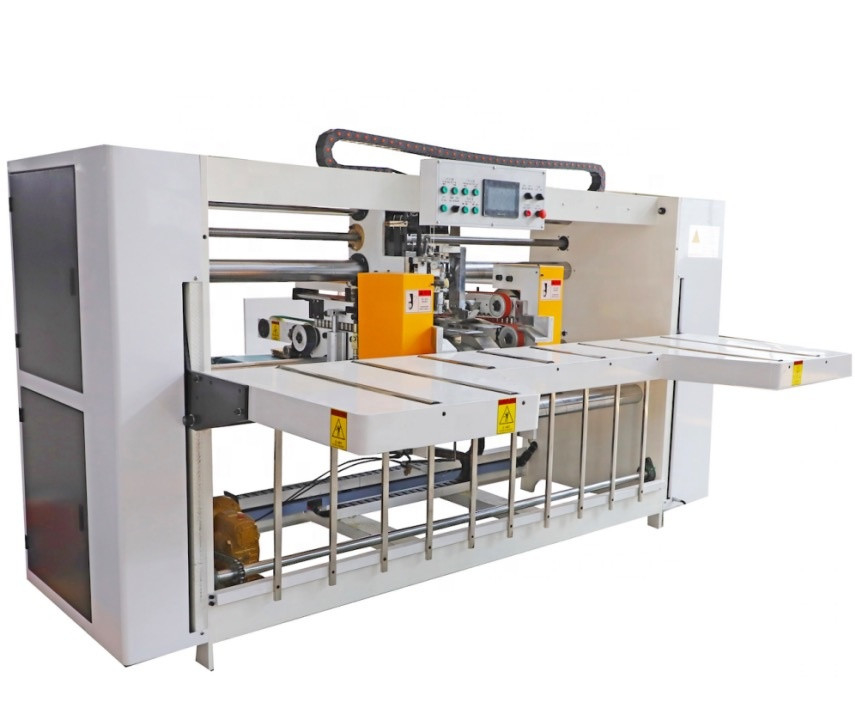

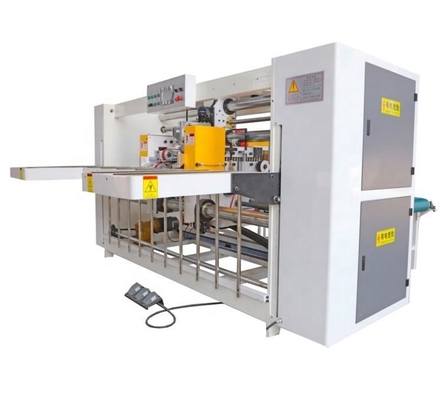

Automatic Single Piece Stitching Corrugated Carton Box Making Machine

I'm Online Chat Now

Automatic Single Piece Stitching Corrugated Carton Box Making Machine

Automatic Single Piece Stitching Corrugated Carton Box Making Machine
Automatic Single Piece Stitching Corrugated Carton Box Making Machine Automatic Single Piece Stitching Corrugated Carton Box Making Machine Automatic Single Piece Stitching Corrugated Carton Box Making Machine Automatic Single Piece Stitching Corrugated Carton Box Making Machine Automatic Single Piece Stitching Corrugated Carton Box Making Machine

Large Image :  Automatic Single Piece Stitching Corrugated Carton Box Making Machine

Product Details:
Place of Origin: CHINA
Brand Name: Hh
Certification: CE EAC
Model Number: 2000mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated
Packaging Details: plastic
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 90 sets every month

Automatic Single Piece Stitching Corrugated Carton Box Making Machine

Description
Size: Customized Corrugated Board: A,B,C,D,E,F,3 Layers,5 Layers
Registration Precision: 0.4mm Power Consumption: 2.5KW
Packaging Material: Paper Effective Width: 1400-2500mm
Glue Type: Water-base Glue Adjust Knife: By Computer
Plc: Simens Frequency: 50Hz
Packing Speed: 0-1200turn/min Key Word: Corrugated Carton Making Machine
Dimensions: 2000mm X 1500mm X 1800mm
High Light:

Automatic Corrugated Carton Box Making Machine

,

Stitching Corrugated Carton Box Making Machine

,

Automatic Single Piece Stitching Corrugated Machine

Automatic Single Piece Stitching Corrugated Carton Box Making Machine





1.Mitsubishi dual servo drive, precision, mechanical transmission part reduction, can effectively reduce the mechanical failure rate.

2.weilun touch screen operation, parameters (nail distance, nail number, nail type, backboard) easy to change.

3.the whole control system adopts Japanese Mitsubishi PLC control system

4.rear electric baffle, driven by stepping motor, accurate size, more convenient and fast size conversion.

5.the full contactor in the control box adopts the brand of Siemens.

6.relays are all made by schneider.

7.photoelectric and proximity switches adopt Japanese omron brand.

8.bottom die, the blade is made of Japanese tungsten steel (wear-resisting).

9.the whole set of nail head are all made of special steel, computer gong precision processing.

10.single stitching /, double stitching //, reinforcing stitching (// // // // / double stitching at both ends and single stitching at the middle part) can be finished in one time, which can meet different requirements of different customers.

11.it only takes one minute to change the carton size and adjust the carton stitching distance, which greatly saves time and is convenient to operate.

12.the front feeding part is automatically counted, and the feeding table is equipped with photoelectric induction device, which automatically rises when feeding.

13.the back section is equipped with automatic counting function, and the finished pieces can be stacked and sent to the end of the transmission machine according to the set quantity (2-99), which is convenient for packing and binding.

14.mechanical speed: 600 nailing/min.

15.stitching distance :30-130mm is adjustable.

16.electric adjustment of the clearance of the paper press rubber wheel.

17.machine order type adjustment, can store 100 orders.
