Product Details:
|
| Grinding Wheel: | Automatic | Cardboard Size: | 1000*400mm |
|---|---|---|---|
| Computerized: | Yes | Port: | Tianjin Xingang Port Of China |
| Automaticity: | Automatic | Production Capacity: | 6000 Boxes Per Hour |
| Key Word: | Corrugated Carton Making Machine | Control System: | PLC |
| Machine Weight: | 300KG | Materials: | Corrugated Cardboard |
| Box Forming: | Ordinary Type | ||
| High Light: | Computerized corrugated carton box machine,1200mm corrugated carton box machine,corrugated box machine Partition Slotter Assembly |
||

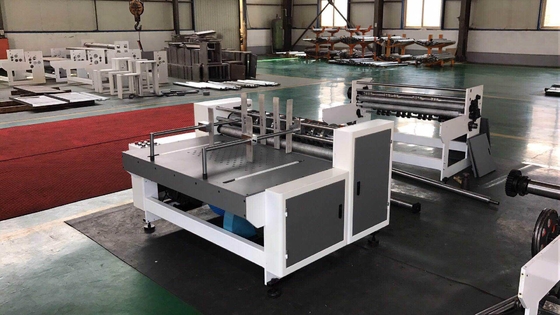

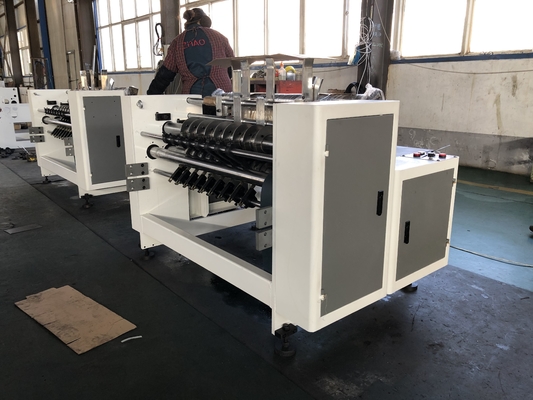

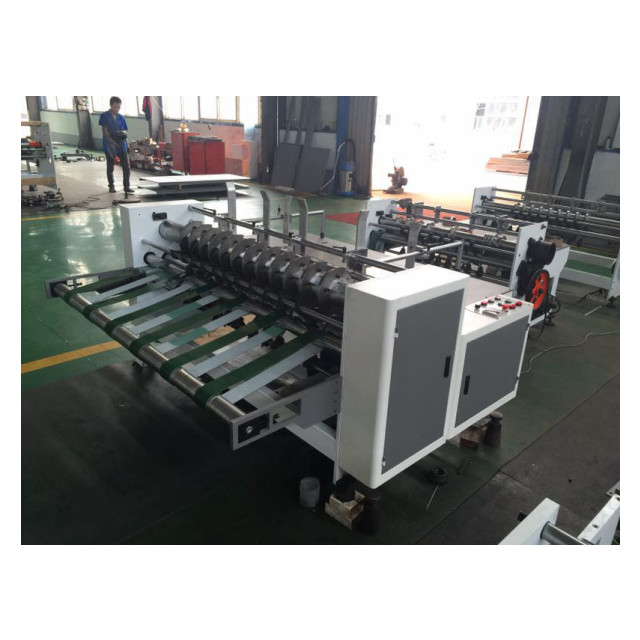

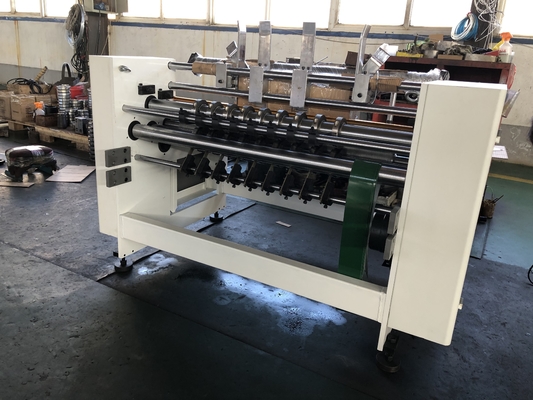

Partition Slotter Assembly Corrugated Carton Box Machine
It has many good characteristics such as the type with new and nice ,beautiful and dignified ,rolling smooth working fast ,operation handy and so on .It is comparative with the same type machine, it has improved four to five times .It also has opening grooving clearly ,without pulp ,the size is exact and useful and so on good characteristics
Width of the machine (mm): 1400
work width 1250mm
2.Number of Knifes : 12 Knifes.
3.Max.size of processing cardboard length : 400mm ,
4.Min.size of processing cardboard length 100*90mm
5.Min.span size of slot 45mm
6.thickness of slot 3mm.5mm
7.Max.depth of slot 200mm
8.Pushing cardboard speed of working table 120 times/min
9.Thickness of processing cardboard 3 layes and 5 layes
| Model | 900 | 1200 | 1600 |
| Max Feeding Size | 800x300mm | 1000x400mm | 1400x680mm |
| Min Feeding Size | 100x80mm | 120x100mm | 200x200 |
| Min Slotting Span | 40mm | 50mm | 50mm |
| Slotting Width | 5mm | 5mm | 5mm |
| Working Speed | 100sheets/min | 100sheets/min | 50sheets/min |
| Max depth | 150mm | 200mm | 300mm |
|
Blade (depend on customer choose) |
Six PCS slotting blade Three PCS Slitting blade |
Six PCS slotting blade Three PCS Slitting blade |
Ten PCS slotting blade Three PCS Slitting blade |
| Power | 1.1kw | 1.1kw | 1.5kw |
| Dimension | 1300x1000x1000mm | 1600x1000x1000mm | 2000x1000x1000mm |
| Total weight | 550kg | 600kg | 800kg |
| Delivery time 30days | |||
|
Payment term: T/T 30% In Advance,70% before delivery |
|||
