Printer Slotter Die Cutter Packing Corrugated Carton Box Machine

I'm Online Chat Now

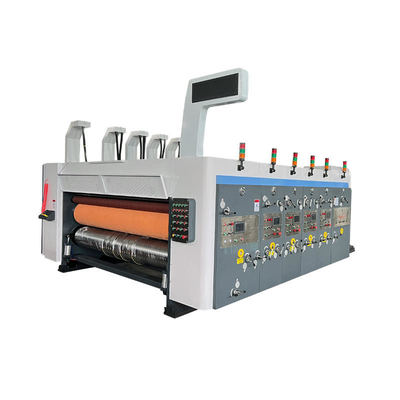

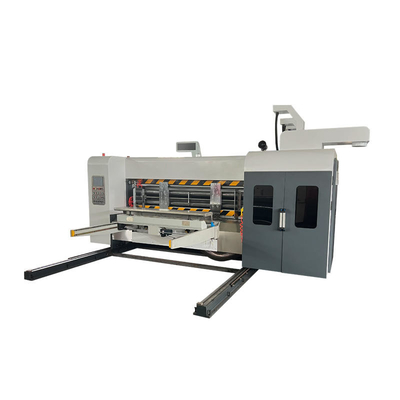

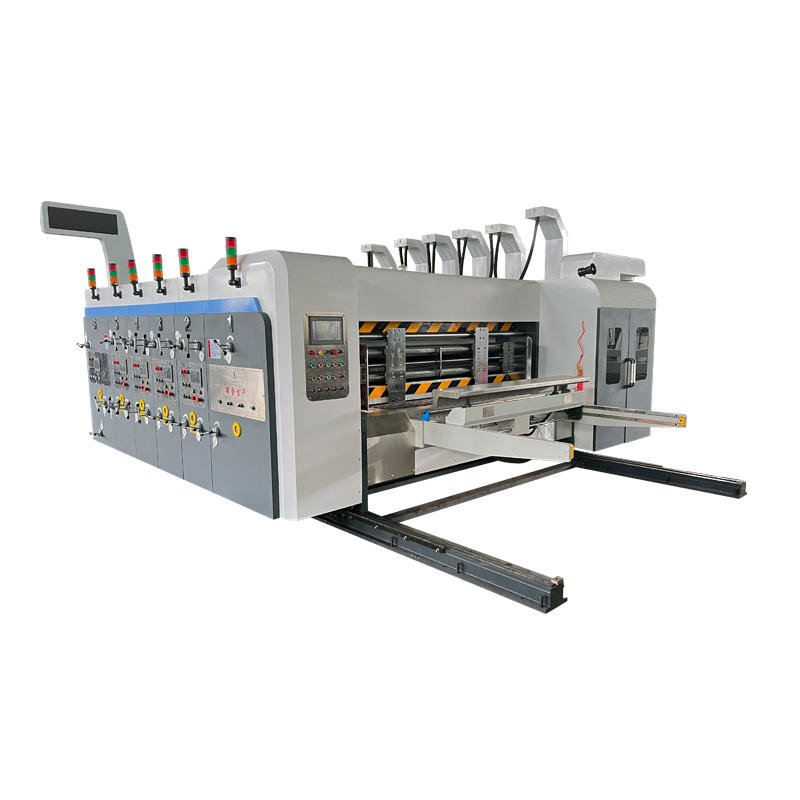

Printer Slotter Die Cutter Packing Corrugated Carton Box Machine

Printer Slotter Die Cutter Packing Corrugated Carton Box Machine
Printer Slotter Die Cutter Packing Corrugated Carton Box Machine Printer Slotter Die Cutter Packing Corrugated Carton Box Machine Printer Slotter Die Cutter Packing Corrugated Carton Box Machine

Large Image :  Printer Slotter Die Cutter Packing Corrugated Carton Box Machine

Product Details:
Place of Origin: CHINA
Brand Name: Hh
Certification: CE EAC
Model Number: 1200*2400mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated
Packaging Details: plastic
Delivery Time: 15-30 days
Payment Terms: T/T
Supply Ability: 30 sets every month

Printer Slotter Die Cutter Packing Corrugated Carton Box Machine

Description
Port: Tianjin Xingang Port Of China Machinery Test Report: Provided
Lengthways Sheets Length: 210-600MM Operation: Automatic
Feeding Way: Lead Feeder Motor Power: 15kw
Feeder Way: Automatic Knife Number: 4 Or Client Require
Corrugateed Carboard: 2 Ply 3 Ply As Customer Requirement Printing Length: 400-2800mm
Control System: PLC Control Machine Dimension: 12m X 2.5m X 2.5m
Material: Corrugated Cardboard
High Light:

Automatic corrugated carton box machine

,

210-600MM corrugated carton box machine

,

Printer Slotter Die Cutter Packing Machine

Printer Slotter Die Cutter Packing Corrugated Carton Box Machine



Use and characteristics:

1. Vacuous adsorbing front feeding paper system, applicable to all kinds of flute profile.transfer smoothly;high speedly and precisely.

2. Frequency transformer devices have been adopted to use on the host, fans and phase adjustment.

3. The drive gear:20GrMnTi high frequency-quenched and carburizing done.

4. Cross-trundling roller driving system, no wear for long time using, ensure for transmission accuracy.

5. Free-keys connection style, roller connects with gear, ensure for registration accuracy

6. Blade-block can be traversed or the carton height can be adjusted, anti- collision device can ensure the safety of the machine.

7. Mechanical spray lubrication, pump circulating system for gears, make gear service life long. Auto-return function.

8. Function of storage of normal die-cutting orders, fast and efficient.



Model 900 1224 1424 1624
Max machine speed (pcs/min) 300 250 180 150
Max feeding size (mm) 900*2400 1250*2700 1450*2800 1660*2700
Max printing size(mm) 880*2000 1200*2400 1400*2400 1600*2400
Min feeding size(mm) 280*680 350*680 360*680 420*680
Max depth of slotting (mm) 230 300 300 410
Die cutting size (mm) ≤±1.5
Tinted precision (mm) ≤±0.4(4 colors ) ≤±0.5(4 colors )
Printing plate thickness (mm) 7.2
Feeding thickness (mm) 2.5-12
Min slotting interval (mm) Normal 160*160*160*160
Reverse 300*60*300*60
