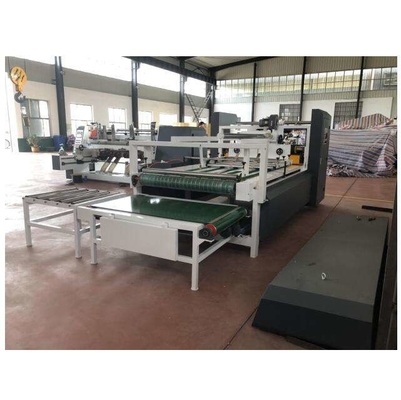

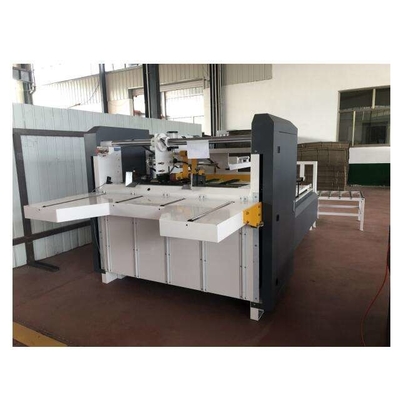

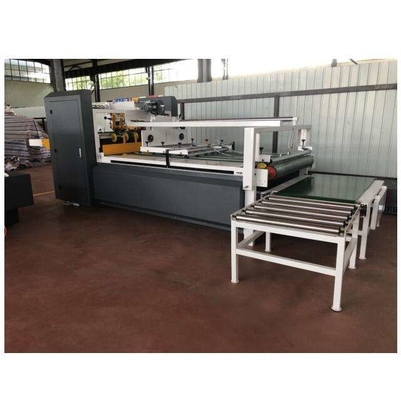

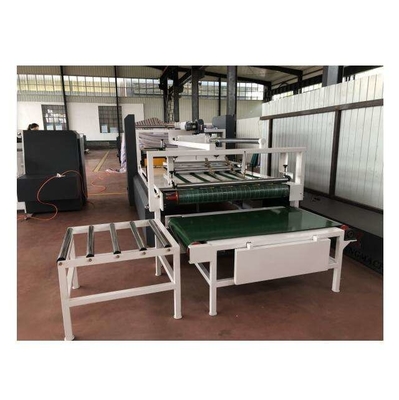

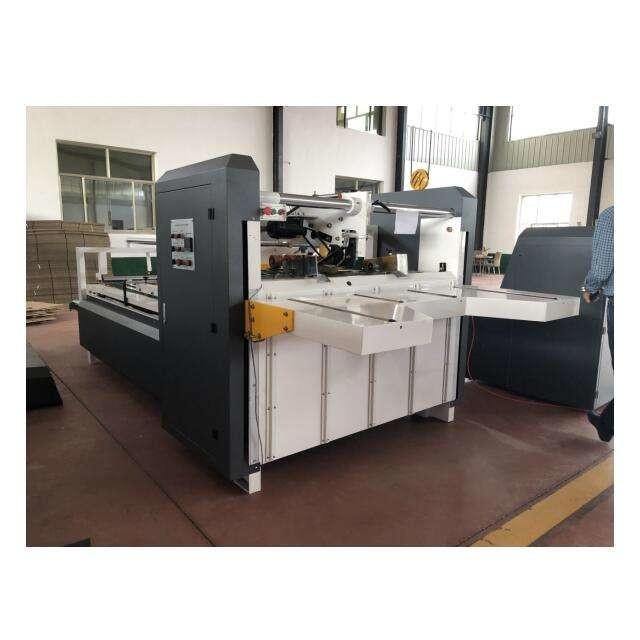

Semi Automatic Corrugated Carton Box Machine Folder Gluer

I'm Online Chat Now

Semi Automatic Corrugated Carton Box Machine Folder Gluer

Semi Automatic Corrugated Carton Box Machine Folder Gluer
Semi Automatic Corrugated Carton Box Machine Folder Gluer Semi Automatic Corrugated Carton Box Machine Folder Gluer Semi Automatic Corrugated Carton Box Machine Folder Gluer Semi Automatic Corrugated Carton Box Machine Folder Gluer Semi Automatic Corrugated Carton Box Machine Folder Gluer

Large Image :  Semi Automatic Corrugated Carton Box Machine Folder Gluer

Product Details:
Place of Origin: CHINA
Brand Name: Hh
Certification: CE EAC
Model Number: 2800mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated
Packaging Details: plastic
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 60 sets every month

Semi Automatic Corrugated Carton Box Machine Folder Gluer

Description
Packaging Material: Corrugated Cardboard Power: 5.5KW
Color: White Color Or Customized Finished Products: Corrugated Carton Box
Power Supply: 220V/380V/415V Machine Speed: 140pcs/min
Automatic Grade: Manual Transmission: Digital Servo Motor
Port: Tianjin Xingang Port Of China Nail Distance: 3800mm
Local Service Locat: INDIA RUSSIA MEXICO Size: Customizable
Type: Corrugated Carton Box Machine
High Light:

Semi-Automatic Folder Gluer Machine

,

Semi-Automatic Folder Gluer

,

Semi Automatic Corrugated Carton Box Machine

Semi-Automatic Folder Gluer Corrugated Carton Box Machine

Main structure:

1.ZXJ2800 typ Semi-auto gluer composes of main form and two small conveyer.

2.Main form including form,up and down working table,forepart feeding section,forepart proofread section,middle transportation section,middle press section,side carton delivery section ,electric control system.

3.The machine adopts name brand import electric spare parts,Siemens electric,OMROPN photoelectricity switch,Japan TOKY counter,Taiwan meanwell electric power supply.Gluer head adopt special alloy material,antiacid-base to keeping the gluer head for long life.Main motors adopts Taiwan Chengbond motor.





Technical parameters:



Parameter specification ZXJ2800
Max size (Length + Width)*2 2800mm
Min size (Length + Width)*2 600 mm
Max size (Width + High) 1515mm
Min size (Width + High) 260mm
Height of feeder 900mm
Use power 3KW
Machinery length 5300mm
Machinery weight 2150kg
Machinery speed 60m/min
