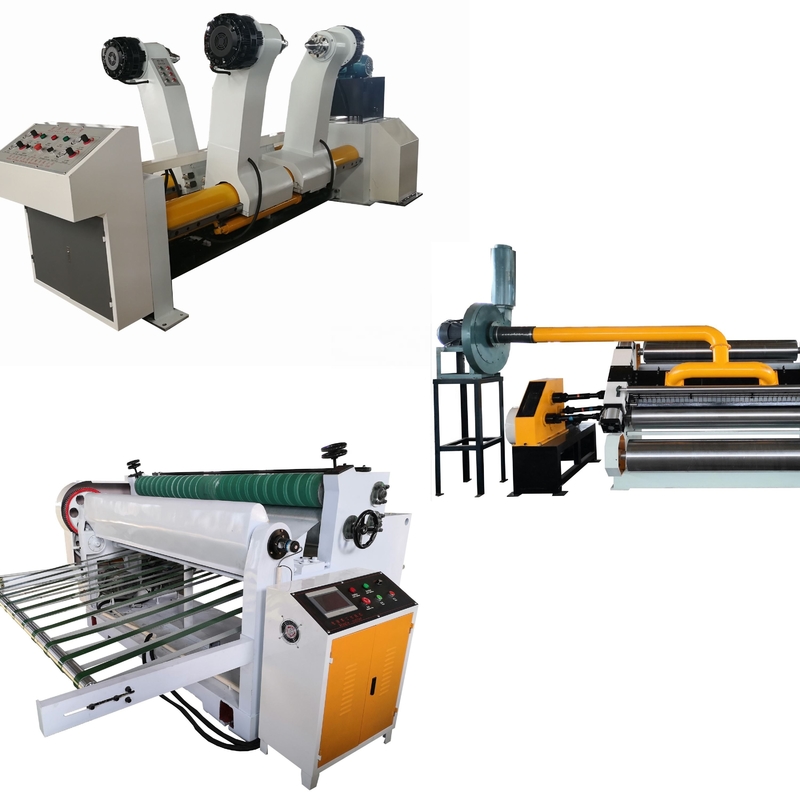

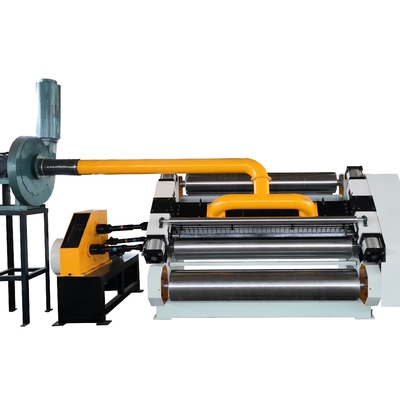

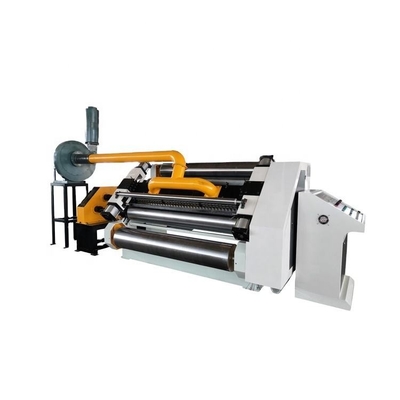

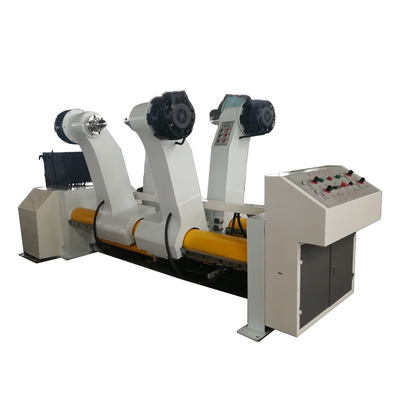

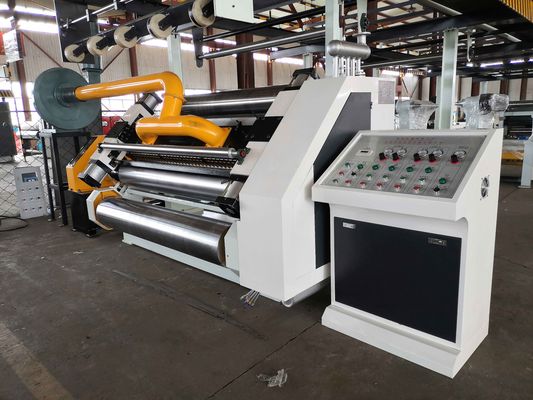

2 Ply Corrugation Cardboard Corrugated Carton Box Machine

I'm Online Chat Now

2 Ply Corrugation Cardboard Corrugated Carton Box Machine

2 Ply Corrugation Cardboard Corrugated Carton Box Machine
2 Ply Corrugation Cardboard Corrugated Carton Box Machine 2 Ply Corrugation Cardboard Corrugated Carton Box Machine 2 Ply Corrugation Cardboard Corrugated Carton Box Machine 2 Ply Corrugation Cardboard Corrugated Carton Box Machine 2 Ply Corrugation Cardboard Corrugated Carton Box Machine

Large Image :  2 Ply Corrugation Cardboard Corrugated Carton Box Machine

Product Details:
Place of Origin: CHINA
Brand Name: Hh
Certification: CE EAC
Model Number: 1600mm 1800mm 2000mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated
Packaging Details: plastic
Delivery Time: 5-8 days
Payment Terms: T/T
Supply Ability: 30 sets every month

2 Ply Corrugation Cardboard Corrugated Carton Box Machine

Description
Feeder Way: Automatic Machine Size: 7300×2000×1900MM
Shaft Roller: 6 Or 8 Automatic Grade: Semi-automatic
Structure: New Design Collect Paper Table: Hydraulic Type
Machinery Test: Provided Function: Box Making
Production Capacity: 100-150pieces/min Motor Power: 11kw
After Warranty: One Year Effective Width: 1400-2500mm

2 Ply Corrugation Cardboard Corrugated Carton Box Machine

NC-120 2ply slitter & cross cutter machine
1)Adopt high speed steel plate blade The slitter unit and cross cutting unit are isolated, which is convenient to adjust and change the blade Slitter is round blade cutting , manual adjust the blade. 2)Cross cutting is Flat straight knife he gear of cross cut unit adopt un-key joint which will never loose. Transmission gear adopt 40Cr , which will thermal refining ,then the surface of gear quench and abrasive planning, adopt Oil-immersed lubrication
Roller stacker
3)As an important part of the paperboard production line, the machine is used to complete the collection and finishing of the paperboard, which greatly reduces labor costs and improves production efficiency. The whole machine adopts servo, PLC control, and the operation screen is simple and easy to learn.
NC-120 2ply slitter & cross cutter machine
Working width
1600mm
The Max. machinery speed
100m/min
Total power
18KW
Diameter of cutting paper knife roller
188mm
Cutting length
500mm-9999mm
Cutting accuracy
±1mm( keeping steady speed)
Max collection paper length
1300mm
Chang order method
Manual or automatic ,can store 200-group orders
Roller stacker
Working width
1600mm
Operation direction
Left or right choose by customer factory
Max machinery speed
100m/min
Stacker length
min:500mm max:1300mm
First part of motor power
3.0kw (frequency conversion and speed adjust motor )
Second and third part of motor power
2.2 kw
Roller output motor power
2.2 kw (gear reducer )

2 Ply Corrugation Cardboard Corrugated Carton Box Machine 0
