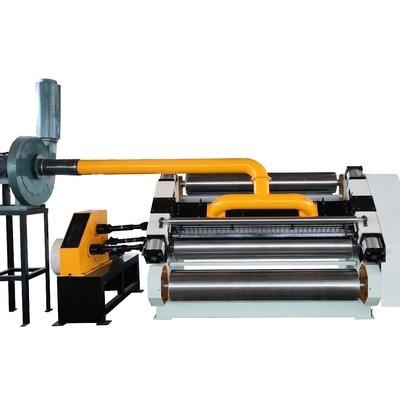

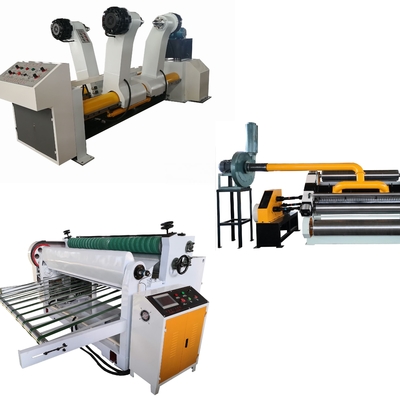

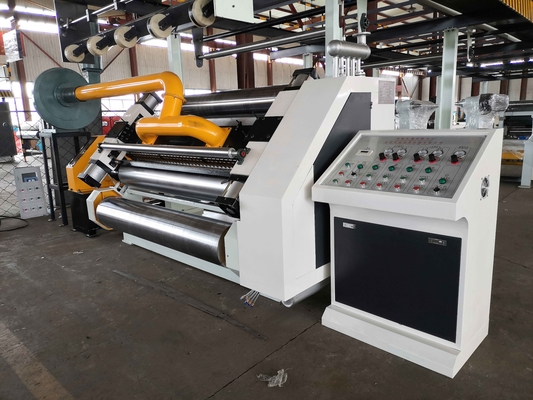

220V/380V Voltage Corrugated Carton Box Machine

220V/380V Voltage Corrugated Carton Box Machine
220V/380V Voltage Corrugated Carton Box Machine 220V/380V Voltage Corrugated Carton Box Machine 220V/380V Voltage Corrugated Carton Box Machine

Large Image :  220V/380V Voltage Corrugated Carton Box Machine

Product Details:
Place of Origin: china
Brand Name: hh
Model Number: 1600
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiated
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 60 sets every month
Contact Now

220V/380V Voltage Corrugated Carton Box Machine

Description
Plate Type: Corrugated Cardboard Weight: 3000kg
Product Name: Corrugated Carton Box Machine Capacity: 50-100pcs/min
Warranty: 1 Year Application: Packaging Industry
Control System: PLC Power: 220V/380V
Highlight:

220V corrugated carton box machine

,

380V carton box making machine

,

industrial corrugated box machine with warranty

220V/380V Voltage Corrugated Carton Box Machine
Glue Rollers
Diameter Φ215mm
Processing Way Surface of glue roller is grinded, then with 25 line rut type net dot, then plating chrome. Surface of glue balance roller is grinded then plating chrome
Control Way Cylinder control of the Lifting Up-down
Glue Supply Glue circulating system (storage tank+glue pump)
Corrugated Rollers
Diameter Down Roller: Φ280mm
Material 48CrMo high quality alloy steel, rigidity HRC55°-58°
Processing Way The surface of upper-lower roller is plating chrome, annealing, hardening and tempering, surface grinded
Flute Type (U/V) ACBEF
Heating way of the reel paper Electric heating
Press Rollers
Diameter Φ280mm
Material Medium steel (MS)45#
Processing Way The surface is grinded then plating chrome, hardening and tempering (With Buffer)
Control Way Cylinder control of the Lifting Up-down
Preheater Rollers
Diameter UP Roller: Φ320mm
Material Seamless steel tube
Material band or origin Tianjin Iron & Steel
Connection All connected by flexible metallic tubes
Common Specifications
Style of Transmit cardboard Vacuum Cover adsorbable style, High pressure Draw fan with wind control Adjusting & noise deadening device
Style of Control Roller Pneumatic control the upper roller, pressure roller and glue roller
Glue Width Adjusting Electric adjusting
Driving Way With frequency inverter
  • Working width: 1600mm
  • Design Speed: 100m/min Working Speed: 60-80m/min
  • Temperature: 180-200℃
  • Air pressure: 0.8-1.3Mpa
Motor Specifications
  • Main Motor: 7.5kw
  • Nominal voltage: 380V 50Hz Continuous (S1) working Type
