Product Details:
|

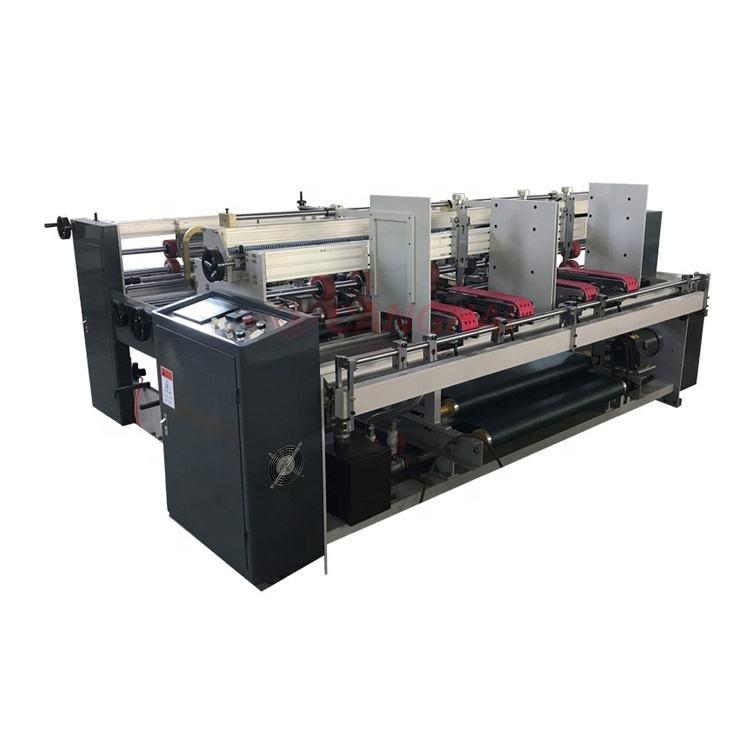

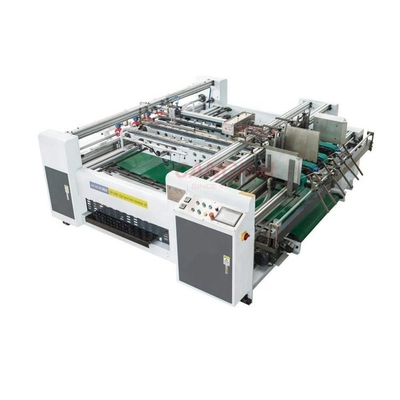

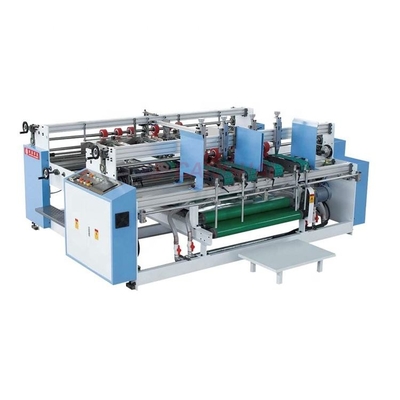

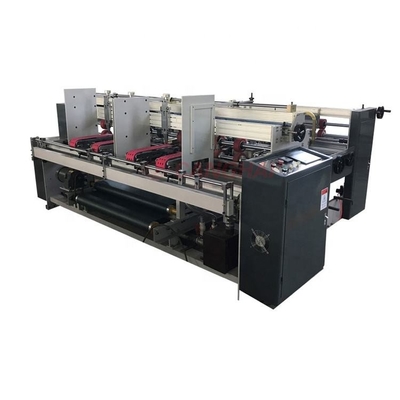

Double Piece Glue Corrugated Carton Box Machine
Technological Parameter
| Machine Model | SPZX-2500 |
| Max Paper feed size (mm) |
2200*1200,
|
| Min Paper feed size(mm) | 450*320 |
| Machine speed |
0-2000pcs/h
|
| power(kw) | 10.2 |
| weight( kg) | 3000 |
| Machine size (mm) | 4300*3500*1200 |
High speed semi automatic pasting box machine can be used for AA,AB two pieces or single piece carton box molding . This machine can replace manual gluing machine ,reduce the labour strength . Because of the automatically is high ,it is compared with traditional gluing carton box machine , Both reduce the manpower , and greatly improve the quality of products , and reduce the labour cost . The pressing and sticking department of this machine outputs finished carton box from the paper feeding end .one worker completes the paper feeding and collects the finished carton box , the another worker specially folds and corrects the carton box . So this machine only need two workers to compete the operation and reduce the area occupied of the equipment . Paper processing range : A-E corrugated flute
