Product Details:
|

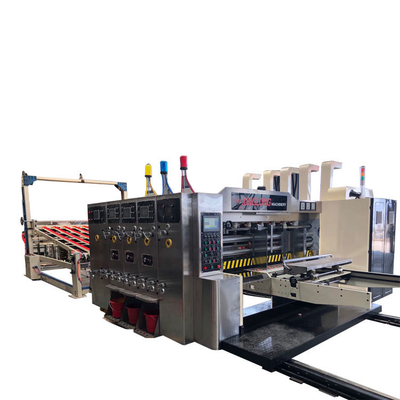

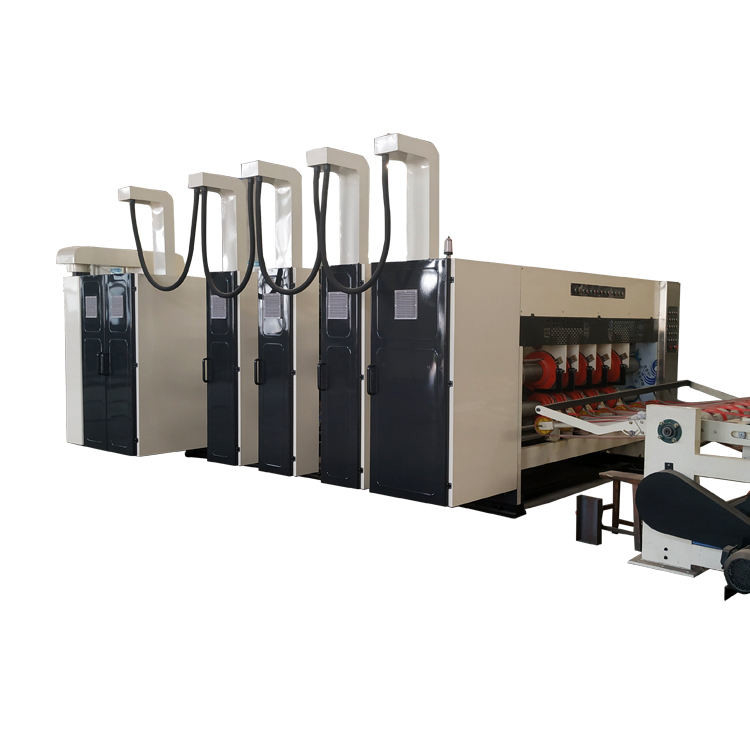

Flexo Slotter Printing Corrugated Carton Box Machine
Control on the main console and each unit console with display adjustment system. Store repeatedorder.easy for operation
Motorized printing plate mouting , auto reset , quick change
Each unit is equipped with emergency stop switch toensure safety operation
Motorized gap adjustment device for ease operation
Transmissions are using precision high hardness gears with spraying type circulating lubrication system
Electric elecment ,bearing ,and pneumatic element all us international brand.
| Type | ZYM1628 |
| Max. passing cardboard(mm) | 1600×2800 |
| Economy printer cardboard(mm) | 1600×2800 |
| Min.cardboard(mm) | 450×600 |
| Suitable cardboard thickness(mm) | 2-17 |
| chromatically precision (mm) | ±0.5 |
| Max. speed (pcs/min) | 150 |
| Economy working speed (pcs/min) | 120-130 |
| Power (KW) | 22 |
| Weight (kg) | 21000 |
| Wallboard thickness(mm) | 50 |
