Product Details:
|
| Automatic Grade: | Semi Automatic | Speed: | 2500s/h |
|---|---|---|---|
| Warranty: | One Year | Condition: | New |
| Applicable Industries:: | Hotels, Garment Shops, Food & Beverage Factory, Restaurant, H | Voltage: | 380v/50hz 220v/60hz |
| Produce Name: | Flatbed Die Cutting Machine | Size: | 2200*1800*1500mm |
| Model: | Ml1100 Ml1200 Ml1400 Ml1500 | Die Cutting Type: | Platform Or Flat Bed Type |
| After-sales Service Provided: | Video Technical Support | Precision: | ± 0.01mm |
| Production Capacity: | 26±2 Times/min | Delivery Time: | 7 Days |
| High Light: | 1300mm flat bed die cutting machine,plc flat bed die cutting machine,1300mm automatic flatbed die cutting machine |
||
Specification
| Model |
Inner chase size (mm) |
Speed (strokes/min) |
Motor power (kw) |
Machine’s weight(kg) |
Overall dimensions(mm) |
| ML-1800 | 1800x1280 | 16±2 | 11 | 42000 | 2180x2760x2100 |
| ML-1700 | 1700x1400 | 16±2 | 11 | 13500 | 2170x2660x2100 |
| ML-1600 | 1600x1325 | 13±2 | 11 | 12500 | 2760x2300x2300 |
| ML-1500 | 1500x1040 | 14±2 | 7.5 | 7000 | 2440x2000x1980 |
| ML-1400 | 1400x1000 | 15±2 | 7.5 | 6800 | 2000x2340x2000 |
| ML-1300 | 1300x920 | 15±2 | 5.5 | 6000 | 2000x2240x2000 |
| ML-1200 | 1200x800 | 20±2 | 4 | 4800 | 1950x2100x1950 |
| ML-1100 | 1100x790 | 20±2 | 4 | 4500 | 1950x2100x1950 |
| ML-1040 | 1040x720 | 20±3 | 4 | 4800 | 1700x2150x1760 |
| ML-930 | 930x670 | 20±3 | 4 | 3500 | 1570x1800x1760 |
| ML-750 | 750x520 | 25 | 2.2 | 2100 | 1360x1550x1520 |
| ML-720 | 720x510 | 25 | 2.2 | 2000 | 1360x1500x1520 |
Machine Features
1. Sliding bearing adopts high-quality copper alloy, resisting and shock absorption.
2. High degree of force of the free-wheel, high pressure.
3. Use high-level material integral casting for the high-intensity machine.
4. The single plate electromagnetic clutch is sensitive and reliable safety.
5. Single pressing, continuous pressing, adjustable delay pressing.
6. Operational height is reasonably arranged. The opening angle of moving bed is optimum.
7. Reliable performance of safety protection system.
8. It could be equipped with inside or outside flexible frame and centralized oil filler.
Machine Application
ML series hand feed die cutting and creasing machine is special equipment of die cutting and creasing a wide range of materials, such as paper, pvc box, cardboard, corrugated board plastic sheet and leather.
It is applicable to the fields of printing, packaging, decoration and plastic industries.It has been well accepted by the customers from the domestic and overseas market due to its outstanding performance, high precision, good quality, easy operation, and low cost in price.

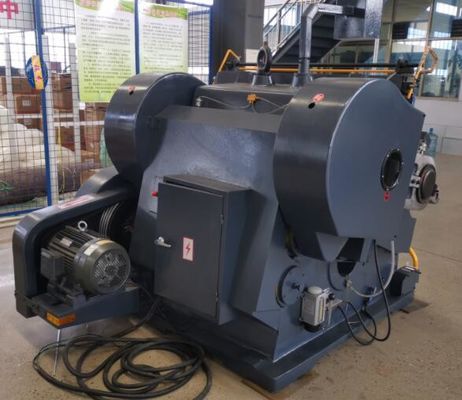

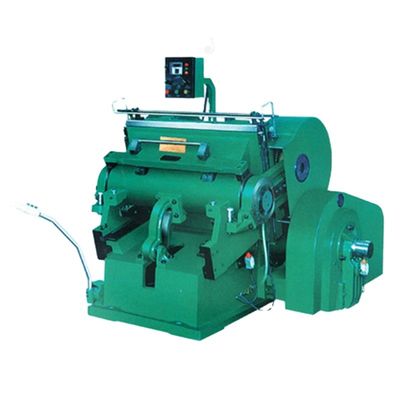

More Machine Picture
