Flexo Slotter Die Cutter Automatic Feeding Type Machine

Flexo Slotter Die Cutter Automatic Feeding Type Machine
Flexo Slotter Die Cutter Automatic Feeding Type Machine Flexo Slotter Die Cutter Automatic Feeding Type Machine Flexo Slotter Die Cutter Automatic Feeding Type Machine Flexo Slotter Die Cutter Automatic Feeding Type Machine

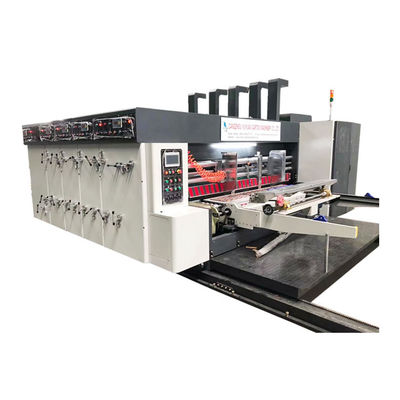

Large Image :  Flexo Slotter Die Cutter Automatic Feeding Type Machine

Product Details:
Place of Origin: china
Brand Name: hh
Certification: CE ISO
Model Number: 1226
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiated
Packaging Details: plastic
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 60 sets every month
Contact Now

Flexo Slotter Die Cutter Automatic Feeding Type Machine

Description
Power Supply: 380V/50Hz/3Ph Speed: Customized
Warranty: 1 Year, 12 Months Print Accuracy: ±0.4MM
Suitable Sheet Thickness: 1.5-11 Mm Paper Feeder System: Lead Edge Feeder
Feeding Type: Automatic Used For: Corrugated Box Making And Packing
Highlight:

Flexo slotter die cutter machine

,

Automatic feeding die cutter

,

Flexo printer slotter machine

Flexo Slotter Die Cutter Automatic Feeding Type Machine
Product Overview
Advanced flexographic printing, slotting, and die cutting machine with automatic feeding system designed for corrugated box manufacturing and packaging applications.
Key Components & Features
Printing Plate Cylinder
  • Constructed from high-quality steel with precision milling and dynamic/static balance testing
  • Surface features longitudinal/lateral lines for easy plate mounting
  • Chrome-plated surface for enhanced durability and longevity
  • Integrated plate attachment groove with 10mm attaching strip and ratchet wheel system
  • Pedal switch controls forward/backward rotation for efficient plate loading and unloading
Printing Phase Positioning System
  • Electromagnetic clutch brake system for precise positioning
  • Brake mechanism locks units at same gear points during phase setting
Safety & Operational Features
  • Emergency stop button for operator safety
  • Disc pneumatic brakes on each group for fast, effective braking
  • Permanent magnetic ink suction head prevents impurities from entering ink supply system

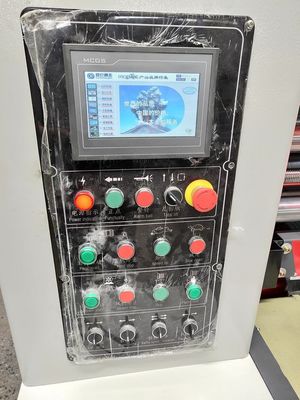

  • Planetary gear structure with PLC touch screen control for 360° printing phase adjustment
  • Electric printing plate traverse mechanism
  • Memory reset function with automatic position restoration
  • Pneumatic plate lifting device with automatic ink distribution when machine stops
Product Specifications
Specification Details
Product Name Flexo Printer Slotter Die Cutter
Also Known As Flexo Printing Slotter Cutter
Maximum Printing Speed 120 M/min
Feeding System Lead Edge Feeder
Suitable Sheet Thickness 1.5 to 11 mm
Feeding Type Automatic
Warranty 1 Year (12 Months)
Power Supply 380V/50Hz/3Ph
Printer Units 1 / 2 / 3 Colors (Customizable)
Application Corrugated Box Making and Packaging
Print Accuracy ±0.4mm
Computerized Control Yes
Performance Benefits
  • High precision die cutting and slotting capabilities
  • Robust design ensures long-term performance and reliability
  • Efficient production with maximum printing speeds up to 120 M/min
  • Seamless automatic feeding operation
  • Ideal for flexographic printing applications in packaging industry
