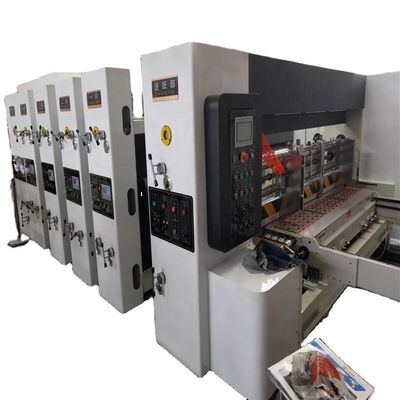

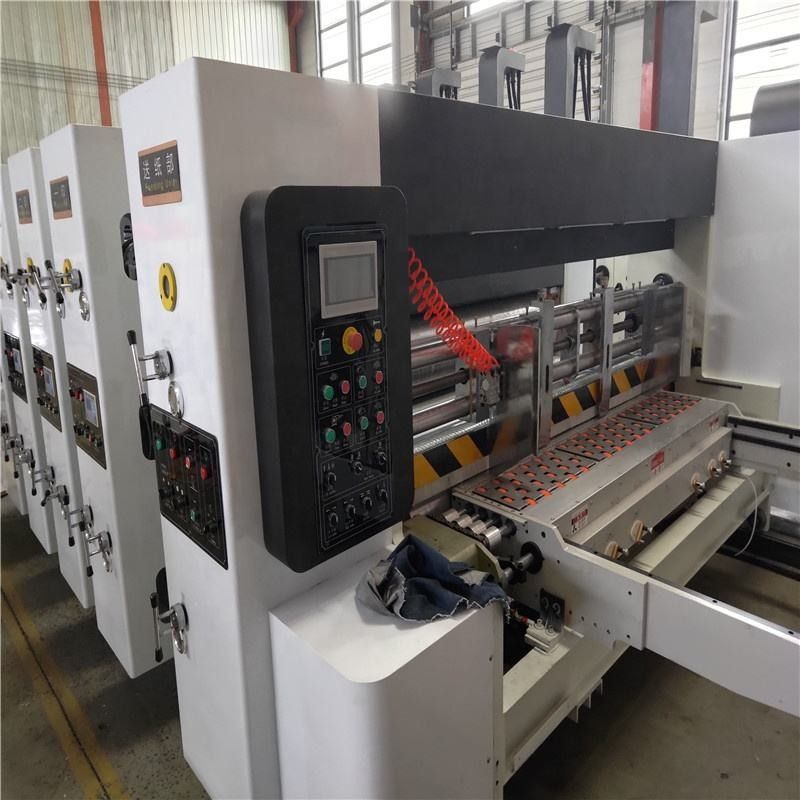

Computerized Flexo Printer Die Cutting Corrugated Box Making

Computerized Flexo Printer Die Cutting Corrugated Box Making
Computerized Flexo Printer Die Cutting Corrugated Box Making Computerized Flexo Printer Die Cutting Corrugated Box Making Computerized Flexo Printer Die Cutting Corrugated Box Making

Large Image :  Computerized Flexo Printer Die Cutting Corrugated Box Making

Product Details:
Place of Origin: china
Brand Name: hh
Certification: CE ISO
Model Number: 1226
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiated
Packaging Details: plastic
Delivery Time: 5-8 DAYS
Payment Terms: T/T
Supply Ability: 60 sets every month
Contact Now

Computerized Flexo Printer Die Cutting Corrugated Box Making

Description
Paper Feeder System: Lead Edge Feeder Print Accuracy: ±0.8MM
Speed: Customized Warranty: 1 Year, 12 Months
Computerized: Yes Suitable Sheet Thickness: 2-11 Mm
Printer Unit: 1 / 2 / 3 /4/5Colors As Customer Need
Highlight:

Computerized Flexo Printer for Corrugated Box

,

Flexo Printer Slotter Die Cutter Machine

,

Corrugated Box Making Die Cutting Machine

Computerized Flexo Printer Die Cutting Corrugated Box Making Machine

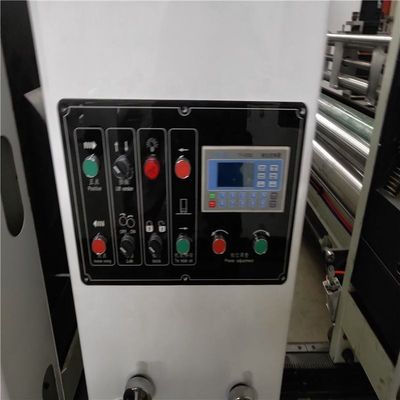

Advanced Control System
Full automatic production control system with touch screen interface. Simply input box information to achieve complete automation and enhanced production efficiency.
Precision Wheel Front Edge Feeder
  • Wheel lead edge feeder ensures accurate feeding with minimal vibration
  • High feeding accuracy for superior performance
  • Eliminates mechanical vibration from cam transmissions
  • Minimizes clearance errors during pull wheels operation
  • Touch screen controlled left/right and back raffles with digital settings
  • Side squaring installation for precise feeding alignment
Dual Pull Roller System
  • Dual pulling roller system ensures stable feeding operation
  • Upper pulling roller features steel core with buffering and abrasion-proof rubber coating
  • Elastic positioning system enables smooth and precise conveying
  • Enhances printing registration accuracy
  • Bottom roller constructed from durable steel material
Automatic Zeroing System
  • Feeder and printer equipped with auto zeroing devices
  • Ensures all units have unified setting reference
  • Enables correct positioning and minimizes blank waste
Motorized Units Engagement/Disengagement
  • Motor-controlled units engagement/disengagement with acoustic safety alarms
  • Automatic brake activation when units release
  • Precise gear meshing for accurate printing phase positioning
  • Main motor start protection system
  • Transmission shaft equipped with overload protector
Advanced Duster System
  • Multiple row brushes combined with upper air suction dust removal
  • Comprehensive static elimination system
  • Effectively removes impurities from board printing surface
  • Frequency inverter controlled airflow and pressure settings
  • Automatic brush elevation adjustment for different caliper blanks
  • Significantly improves printing quality
Technical Specifications
Parameter Specification
Suitable Sheet Thickness 1.5-11 mm
Feeding Type Automatic
Printer Unit 1 / 2 / 3 Colors (Customizable)
Max Printing Speed 120 m/min
Speed Customized
Warranty 1 Year, 12 Months
Print Accuracy ±0.4 mm
Power Supply 380V/50Hz/3Ph
Paper Feeder System Lead Edge Feeder
Application Corrugated Box Making and Packaging
Key Features
  • Flexo Printer Slotter Die Cutter with customizable color options
  • Advanced lead edge feeder system
  • High precision flexographic slotter die cutter
  • Efficient production capabilities
  • Also known as Flexo Slotter Die Cutter
  • Functions as Flexographic Printing Slotting Machine

Tag:

Flexo Printer Slotter Die Cutter,

Slotter Die Cutter Machine,

Automatic Flexo Printer Slotter Die Cutter
