Product Details:
|
| Automatic Grade: | Semi Automatic | Function: | Make The Carton Machinery |
|---|---|---|---|
| Speed: | 12pcs/min | Warranty: | One Year |
| Condition: | New | Applicable Industries:: | Hotels, Garment Shops, Food & Beverage Factory, Restaurant, H |
| Voltage: | 380v/50hz 220v/60hz | Produce Name: | Flatbed Die Cutting Machine |
| Size: | 4500*1800*1500mm | Model: | Ml1100 Ml1200 Ml1400 Ml1500 |
| Die Cutting Type: | Platform Or Flat Bed Type | After-sales Service Provided: | Video Technical Support |
| Production Capacity: | 26±2 Times/min | Creasing Tangent Length:: | 15m |
| High Light: | Carton Flatbed Die Cutter,Flatbed Die Cutter Machine 4500*1800,2.2kw Cardboard Die Cutter |
||

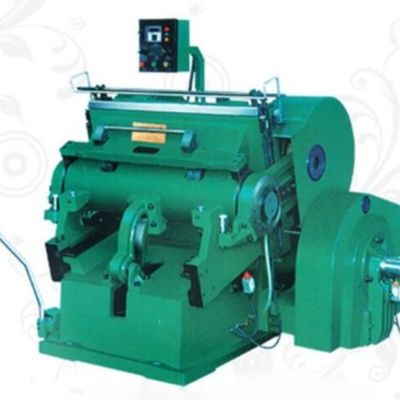

Cardboard Carton Die Cutter Machine Platform Flatbed
Flatbed Die Cutting Machine through the imprinting plate to apply a certain pressure, the print or paper board rolled into a certain shape, the shape is mainly used for cardboard, corrugated board, plastic sheet, leather, cork, self-adhesive, EVA, double The die-cutting (full-cut, half-cut) of plastic, electronic and other materials is an important equipment for post-press packaging and forming.
Technical Parameters
| Product Name | ZM-750 Cardboard Die Cutting And Creasing Machine Price |
| Plate and frame size | 750*520mm |
| Working Speed | 26±2 times/min |
| Creasing tangent length | <15m |
| Power | 2.2kw-6H 380V |
| GW/NW | 2200KG/2000KG |
| Dimension | 1.5*1.32*1.6M |
Features
1. The casting is made of HT250 gray cast iron, which is then annealed so that the casting (including the fuselage, press frame, etc.) is not easily deformed or broken.
2. The main shaft adopts tetraphosphorus chromium steel, after quenching and tempering to improve the strength, rigidity and hardness of the main shaft so as to achieve the effect of not easily deforming.
3. The main parts of the gears use tetraphosphorus chromium steel, after quenching and tempering.
