Product Details:
|
| Automatic Grade: | Automatic | Function: | Make The Carton Machinery |
|---|---|---|---|
| Speed: | 6000pcs/hour | Warranty: | One Year |
| Condition: | New | Applicable Industries:: | Hotels, Garment Shops, Food & Beverage Factory, Restaurant, H |
| Voltage: | 380v/50hz 220v/60hz | Produce Name: | Flatbed Die Cutting Machine |
| Size: | 6870*2398*2356mm | Model: | 1300*800 |
| Die Cutting Type: | Platform Or Flat Bed Type | After-sales Service Provided: | Video Technical Support |
| Max Die-cut Size: | 1490*1100mm | Max Die Cutting Pressure:: | 400N |
| Highlight: | 380v Automatic Flatbed Die Cutting Machine,1080 Stripping Flatbed Die Cutting Machine,380v Automatic Die Cutting Machine |
||

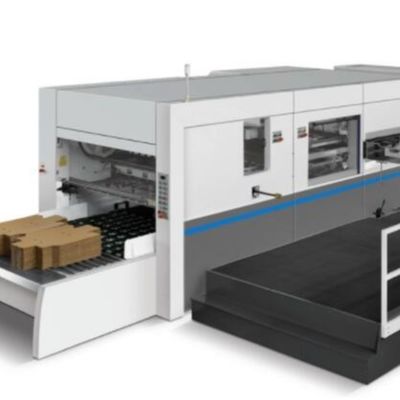

1080 Stripping Full Automatic Flatbed Die Cutting Machine
Automatic Die-cutting & Creasing Machine with Stripping (Lead Edge Feeder) can efficiently complete the die cutting and embossing of products, as well as maintaining the highest precision and product quality.
Technical Parameters
|
MODEL
|
1300
|
1500
|
1650
|
1900
|
|
Maximum sheet size (mm)
|
1290*940
|
1500*1100
|
1650*1200
|
1900*1400
|
|
Minimum sheet size (mm)
|
550*450
|
550*450
|
650*450
|
650*450
|
|
Maximum cutting size (mm)
|
1280*920
|
1480*1080
|
1620*1180
|
1870*1380
|
|
Inner chase size (mm)
|
1310*970
|
1520*1130
|
1650*1230
|
1900*1430
|
|
Maximum cutting pressure
|
400 Tons
|
400 Tons
|
400 Tons
|
400 Tons
|
|
Stock range
|
B, E, C, A Flue and double wall
or corrugated board up to 8.5mm |
|||
|
Min. Gripper waste
|
12mm
|
12mm
|
12mm
|
12mm
|
|
Min. Gripper margin
|
6-12mm
|
6-12mm
|
6-12mm
|
6-12mm
|
|
Cutting rule height
|
23.8mm
|
23.8mm
|
23.8mm
|
23.8mm
|
|
Maximum speed
|
6000 s/h
|
6000 s/h
|
6000 s/h
|
5500 s/h
|
|
Max. Die-cutting pressure
|
400tons
|
400tons
|
400tons
|
450tons
|
|
Total power
|
25 KW
|
30 KW
|
38 KW
|
38 KW
|
Features
1) German technology, machine core worm gear, worm structure, synchronization to send oil
to machine parts could prolong the service life of equipment.
2) The professional typesetting technology sector paper to save up to 18%, save manpower cost, manufacturing cost, improve production efficiency.
3) Control the feeding, the realization of color code tracking, precision die-cutting.
4) According to the paper layout, use different shape knife version, pneumatic locking knife version, easy to change.
1. Q: Are you a factory or trading company?
A: We are manufacturer.
2. Q: Where is your company located? How can I visit there?
A: Our company is located in Dongguang County,Cangzhou City,Hebei Province. We are near from Beijing/Tianjin city, only need 2/4 hours,We can arrange car to pick up from airport or hotel
3. Q: Do you have any working machine for us to visit?
A: Yes,We have running machine near our factory also in our city, we can arrange visiting
4. Q: How is the warranty of the machine?
A: Our machines have ONE YEAR WARRANTY. And the engineers available for overseas service.
5. Q:Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance, which will guarantee your products receiving, we also accept other safe payment way as you want.
